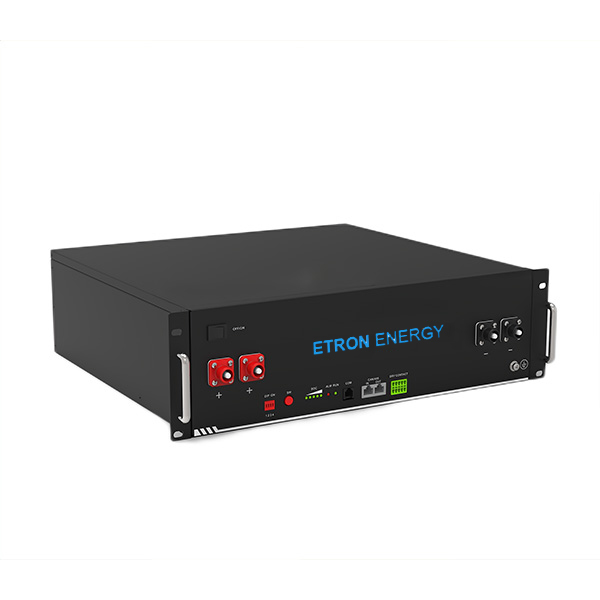

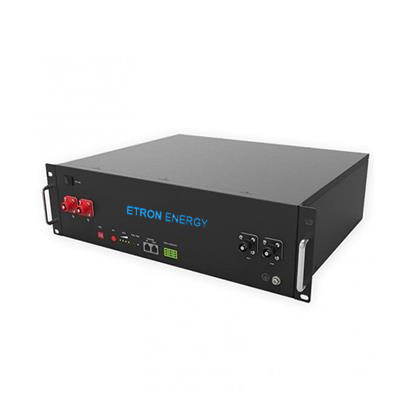

Rack Mounted 48V 100AH
This battery system uses lithium iron phosphate as the battery anode material and is equipped with built in high-performance BMS to effectively manage the battery cells. The capacity of this module is 4.8 Kwh and main characters include flexible expansion, easy install and maintenance,etc.
|
Mode |
48V 100Ah |
|
Nomial Capacity |
4.8KWh |
|
Battery Type |
LiFePO4 |
|
Charge Voltage |
54V |
|
Discharge Voltage Range |
40.5-54V |
|
Max. Charging Current |
40A |
|
Max. Discharging Current |
90A |
|
DOD |
90% |
|
Cycle Life |
>6000 25°C 0.5C |
|
Working Temp Range |
Charge: 0°C~+55°C Discharge:-20°C~+55°C |
|
Weight |
40KG |
|
Dimension |
520*150*474mm |
