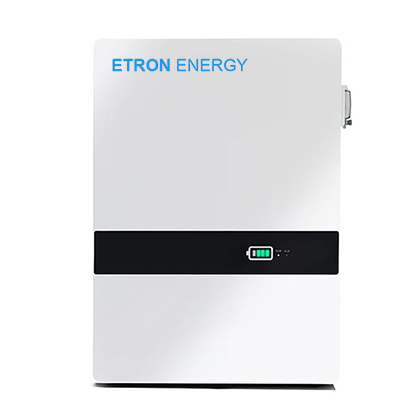

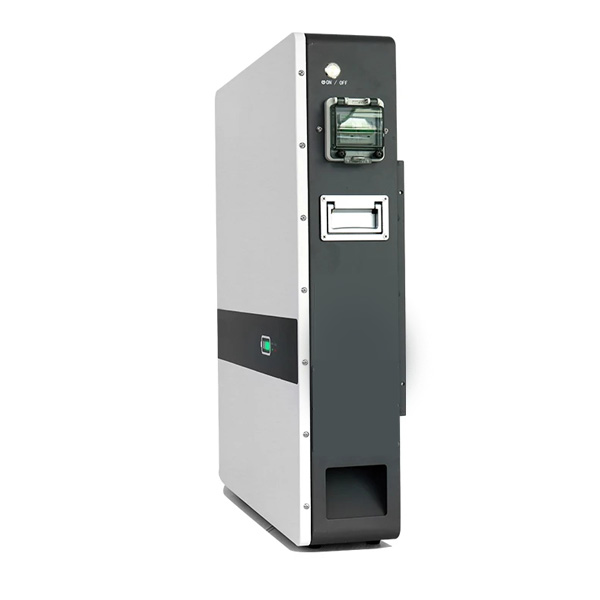

Wall Mounted 51.2V 200AH
The module is deep cycle and high capacity lithium battery, supporting wall-mounted or floor-mounted installation. The energy can get up to 10.44 kWh for single unit with efficient performance, and meet the daily household electricity demand.
|
Mode |
51.2V 200Ah |
|
Nomial Capacity |
10.44KWh |
|
Battery Type |
LiFePO4 |
|
Charge Voltage |
57.6V |
|
Discharge Voltage Range |
43.2-57.6V |
|
Max. Charging Current |
90A |
|
Max. Discharging Current |
140A |
|
DOD |
90% |
|
Cycle Life |
>6000 25°C 0.5C |
|
IP Protection |
IP65 |
|
Communication |
CAN,RS485 |
|
Working Temp Range |
Charge: 0°C~ + 55°C Discharge:-20°C~ + 55°C |
|
Weight |
96kg |
|
Dimension |
586*790*197mm |
