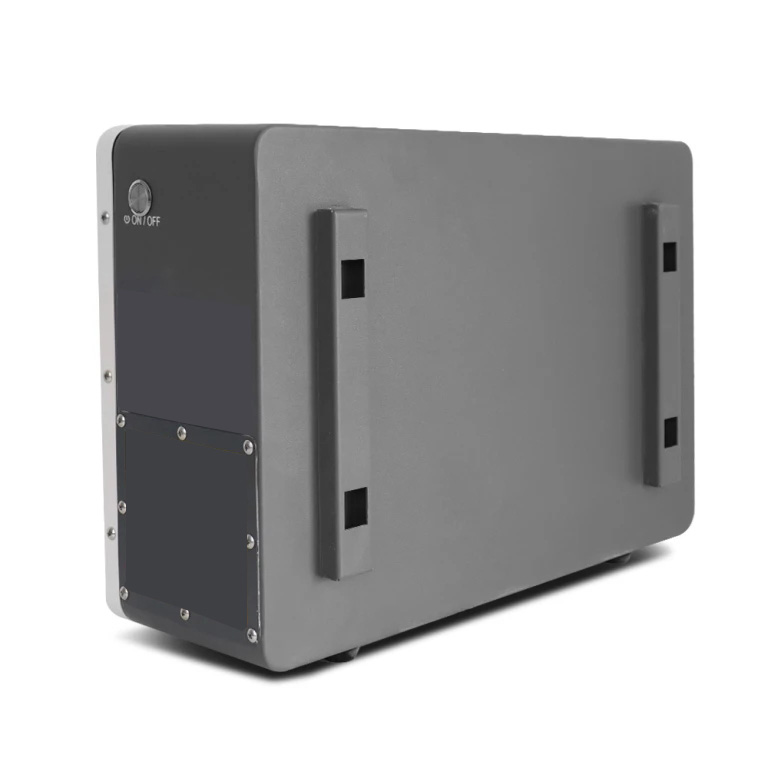

Wall Mounted 51.2V 100AH
The module is deep cycle and high capacity lithium battery, supporting wall-mounted or floor-mounted installation. The energy can get up to 5.12 kWh for single unit with efficient performance, and meet the daily household electricity demand.
|
Mode |
51.2V 100Ah |
|
Nomial Capacity |
5.12KWh |
|
Battery Type |
LiFePO4 |
|
Charge Voltage |
57.6V |
|
Discharge Voltage Range |
43.2-57.6V |
|
Max. Charging Current |
40A |
|
Max. Discharging Current |
90A |
|
DOD |
90% |
|
Cycle Life |
>6000 25°C 0.5C |
|
IP Protection |
IP65 |
|
Communication |
CAN,RS485 |
|
Working Temp Range |
Charge: 0°C~ + 55°C Discharge:-20°C~+ 55°C |
|
Weight |
52.5kg |
|
Dimension |
536*464*180mm |
